Long Material Storage Rack
Roll out Cantilever Rack
—

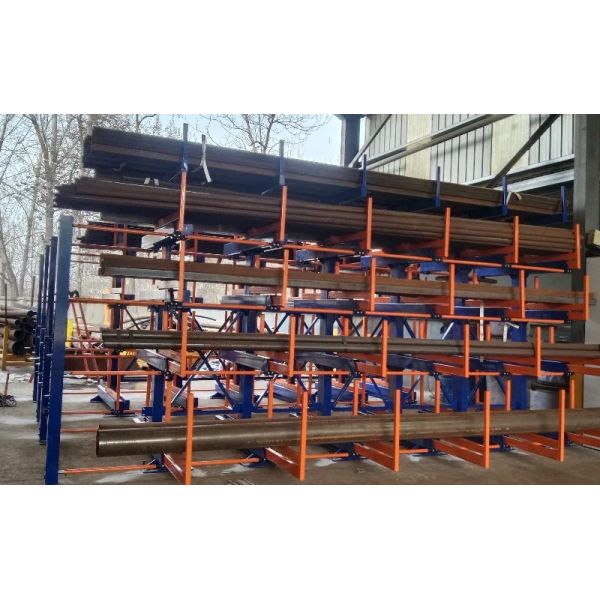

Roll out cantilever racking is ideal for storing and accessing bar stock, angle iron, tube,pipe, rollers, mandrels..etc long material and bulk goods, usually work will take a lot of time and find the right items they need if these items are stored on the ground. Roll out racks will increase your work efficiency and save your warehouse space.
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Features
—
1.Material is handled by crane, no necessary with wider aisles so save space.
2.Sorting and storing any length of material.
3.Time-saving, material can be operated by crane from rack to terminal directly.
4.Solid structure with heavy loading capacity loading Max 5000kgs per layer.
5.100% extended arms, each layers can be accessed easily.
6.Materials can be stored by categories or size, and tray available for leftovers
7.Single or Double units available (Customized dimension) 8.Electrically Drive roll out racking available.
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Product composition
—
1.Tilted Cantilever: When the weight of goods causes a downward angle shift in the cantilever, the upward angle (2°~4°) effectively prevents goods from scattering.
2.Cantilever Arm Ends & Base Retainers: Installing retainers at the outer ends of the cantilever arms and on the base prevents goods from rolling and falling, while also safeguarding operators.
3.Specially Designed Cross Braces: Connecting the uprights horizontally and diagonally strengthens the torsional stability of the cantilever rack.
4.Extended Base: The base is intentionally designed longer than the cantilever arms, effectively preventing goods from tilting the overall structure when placed on the arms.
5.High-Strength Base Bolts: Light-duty rack bases are secured with nine M16120 bolts, while heavy-duty rack bases use four M18290 bolts. These high-quality bolts reinforce the connection between the uprights and the base, enhancing the overall stability of the cantilever rack and preventing the risk of toppling.
6.Premium-Quality Bolt Fastening: Grade 8.8 premium expansion bolts (M12*110) securely anchor the base to the ground.
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Product Description
—
| Standard | G6053S | G6053D | G9055S | G9055D | Customized |
| Storage Sheet Size | 6000mm | 6000mm | 9000mm | 12000mm | Customization |
| Loading Per layer | 2tons | 3tons | 5tons | 6tons | Customization |
| Number of layers | 3+1 | 4+1 | 3+1 | 3+1 | Customization |
| Single /Double | Single | Double | Double | Double | Customization |
| Total Loading per rack | 8tons | 25tons | 35tons | 42tons | Customization |
| Length of Am | 550mm | 600mm | 800mm | 800mm | Customization |
| Distance between two layers | 600mm | 600mm | 800mm | 800mm | Customization |
| Operation System | PLC Frequency conversion control | PLC Frequency conversion control | PLC Frequency conversion control | PLC Frequency conversion control | PLC Frequency conversion control |
| Color of Rack | Orange/Blue | Orange/Blue | Orange/Blue | Orange/Blue | Customization |
| Standard | B3015-63 | B4015-63 | B4020-65 | B6020-66 | Customized |
| Storage Sheet Size | 3t | 3t | 5t | 6t | Customization |
| Loading Per layer | 3000x1500 | 4000x1500 | 4000x2000 | 6000x2000 |
| Number of layers | 5+1 |
| Single /Double | ≤220 |
| Total Loading per rack | 3515 | 4015 |
| Length of Am | 3505x2280x2000 | 4505x2280x2000 | 4505x2280x2500 | 6505x2280x2500 | |
| Distance between two layers | Integrated pull-out type |
| Operation System | 355 | |
| Color of Rack | 2195 | 2250 | |
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
CASE
—
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Telescopic Cantilever Rack · Heavy Duty Storage Rack · Made In China
