Medium Duty Racks
Medium Duty Rack Structure
——

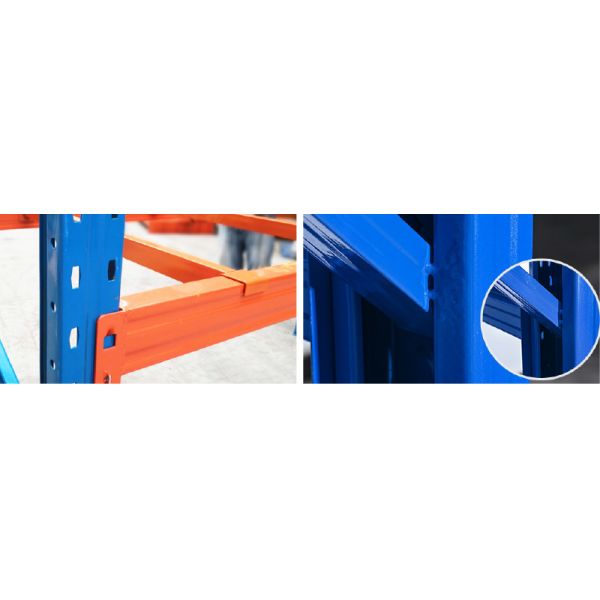

1. Rack column is made of cold-rolled steel by a special roll forming machine. The upright column heads double row holes at 50mm pitch along a straight line. Column hole used to mount beams. The two columns are opposite, with the horizontal connecting beam and the diagonal bracing in the middle to assemble two columns into a shelf.
2. Beams using "P" type pipe, commonly known as "ladder beam." The height of the ladder matches the height of the deck.
3. Shelves steel plate with cold-rolled steel, according to the required size bending on the four sides.
4. Beam and column mounted, assembled into a frame, and finally laid steel plate, thus a complete set of medium-sized shelf molding.
5. All parts of the shelf are well formed, all finished, polished, pickled, phosphated, fully automated powder electrostatic sprayed and dried. Produced shelf surface smooth, beautiful. Shelf layer can be adjusted up and down according to 50mm pitch, easy disassembly.
Column design
The column adopts rhombic hole design, with dense punching holes, which can increase the bearing capacity, enhance the stability and facilitate the adjustment.
Rolling bearing
Equipped with rolling high rotation bearing, it can ensure that the drawer can slide out easily even if it bears high-quality molds and articles
Sliding crown block
The top is equipped with a sliding crane, which can easily lift 500 kg of goods, which is more convenient to store or take out
Strengthen column base
Firm as rock, warm as Mount Tai, thicker material to strengthen stress, more safe
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Features
——
1.Affordable and modular manual storage system for small goods
2.Quick and easy to assemble, extend and adjust—virtually no tools required
3.Available in standard frame widths of 800 and 2000 mm, and depths varying from 400 to 800 mm
4.Wide range of accessories for various storage methods
5.Safe for employees and your products
6.Available in all blue, orange and other colors
7.Available from 100 to 500 Kg/layer
8.Number of layers: 3-6
9.Maintenance: Less
Medium Duty Rack A· Warehouse Storage Rack · Made In China

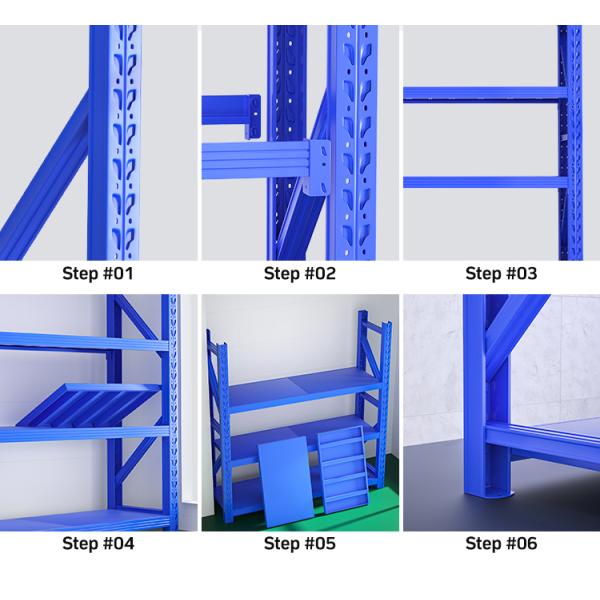

Installation Steps
——
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Product Paramenters
——
Medium Duty Rack A· Warehouse Storage Rack · Made In China

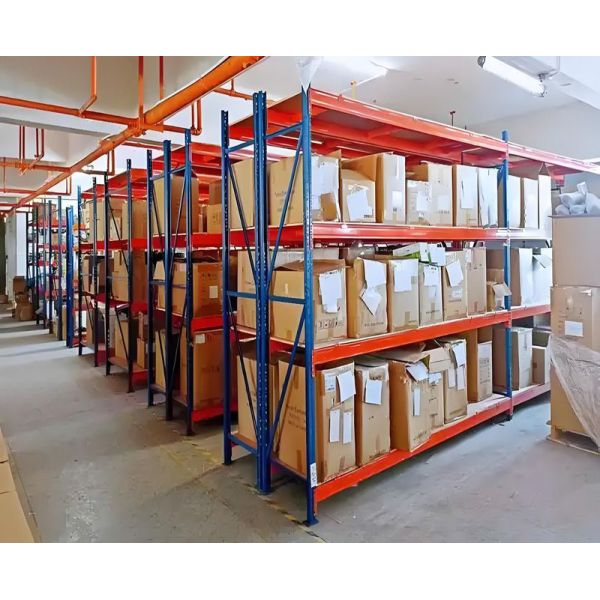

CASE
—
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A
Medium duty shelving, also called longspan shelving, a strong and durable shelving system. It is smart and clean in appearance. It is cut-in composite structure with upright, step beam, panel and etc.
Height of each layer is easily to be adjusted every 50mm.It is widely used in high density storage of small parts, heavy items, large and bulky items.
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Structural Principles
——
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Product Description
——
- Excellent in quality and beautiful in appearance with high quality steel
- Easy to dismantle and assemble without any nuts & bolts and tools
- utilize the space of warehouse effectively
- Can be adjusted freely by a pitch of 50mm
| Loading capacity( kg per level ) | Length :1200mm | Length:1500mm | Length:1800mm |
| Depth : 470mm | 300kg | 250kg | 250kg |
| Depth : 600mm | 350kg | 300kg | 250kg |
| Depth : 720mm | 350kg | 300kg | 250kg |
| Depth : 920mm | 450kg | 400kg | 400kg |
| Depth : 1180mm | 450kg | 400kg | 400kg |
| Size of Upright (mm) | 55×55×1.5 Pitch=50 H=1.5,1.8,2.0,2.4,3.0 (m) |
Medium Duty Rack A· Warehouse Storage Rack · Made In China

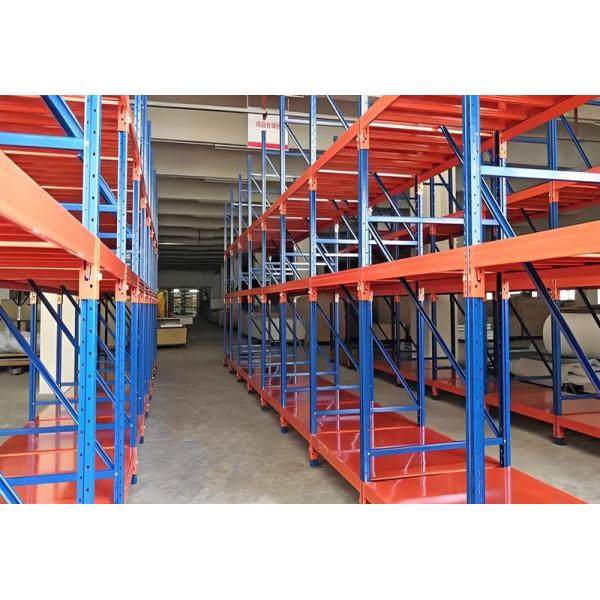

CASE
—
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Medium Duty Rack A· Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Medium Duty Rack A· Warehouse Storage Rack · Made In China
